Wireless Camera Shutter Remote

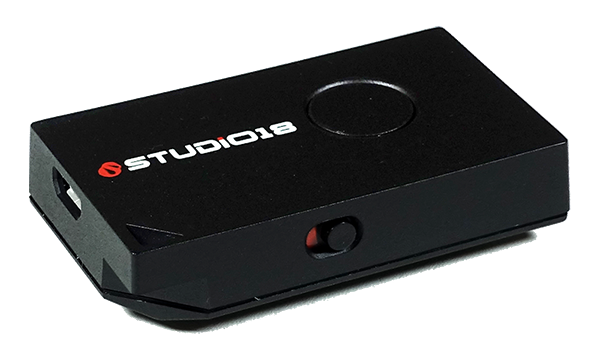

Cubic Trigger is a complete wireless shutter remote solution for your camera. There are two parts to this gadget - Bluetooth shutter remote and free smartphone apps.

Cubic Trigger can be used as an independent shutter control by simply connecting it to the camera and manually pressing the top button to take photos without causing the camera to wobble.

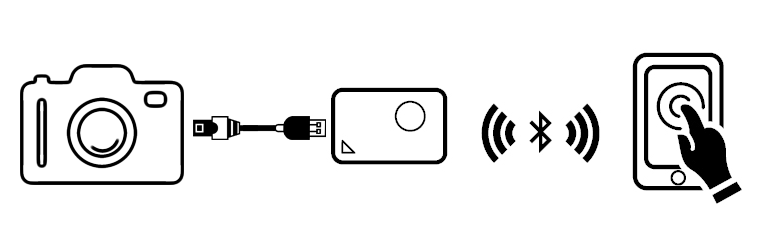

Moving up to the next level, Cubic Trigger can also be operated wirelessly through our custom designed app. Connecting the unit to your phone through Bluetooth, you can then find the 7 carefully calibrated scene modes.These include basic, time lapse, dodge-and-burn, schedule, star trail, and sound trigger.

And for shutterbugs who also have the travel bug, the Cubic Trigger app comes with Geotagging capabilities so you never forget where a photo was taken (note: the Geotagging function is only available for Nikon cameras).

Bluetooth Shutter Remote

Wireless Remote

Bluetooth 4.0 has a range of 25m (85ft) when used in an open environment. Now you can put yourself in your photos without having to set a timer, use a selfie stick, or ask a stranger who, let’s be honest, likely has no idea how to operate your camera. And when taking photos of something else, you now aren’t tied to your camera but instead can move around freely to better control your subject.

Shutter Button

Cubic Trigger can act as a stand-alone wired shutter trigger. The button has a 2-stage action to first focus, then take the photo. We have also taken the texture of the button into consideration, making sure it feels as good, or better, than the shutter button on your camera.



Agile and Dynamic

An accessory is not useful if it takes its own bag just to carry, so we shrunk it down to a dimension of 53.6 x 31.2 x 13.6mm -- even smaller than the average car key or garage remote! Just slip it into your camera bag or pocket and away you go. And comparing Cubic Trigger to traditional electric camera triggers, it weighs in at a mere 14g without its battery.

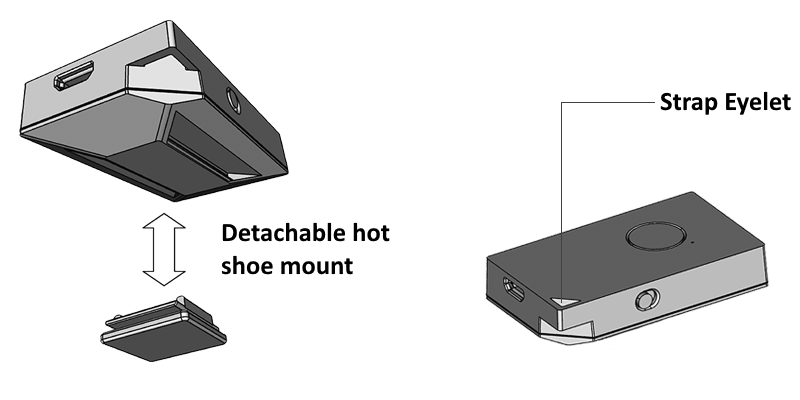

Cubic Trigger can be affixed to the camera using a standard shoe mount or, for those that like to hang loose, the mount can be removed to allow the device to be operated at any angle. After much trial and error, we found the perfect material that is flexible yet holds snugly on to Cubic Trigger.

Energy Efficient

Bluetooth 4.0 technology’s economic use of power means that under normal use conditions, Cubic Trigger can continue to communicate with the app for more than half a year before the battery runs out. And once that happens, if you have opted for the CR2032 single-use coin battery, all you need to do is buy a new one. Cubic Trigger is also compatible with rechargeable LR2032 batteries.

Support Various Cameras

Cubic Trigger connects the camera by a interchangeable cable. Simply replace the cable, and it is ready for different camera(s). Currently the cable is available for Canon, Nikon, and Sony. We're planning to make cable for other brands in near future.

Support cameras:

  • Nikon 10-pin remote terminal : D1, D1H, D1X, D2, D2H, D2Hs, D2X, D2Xs, D3, D3s, D3x, D4, D4s, D5, D200, D300, D300s, D500, D700, D800, D800e, D810, D850 and later.
  • Nikon DC-2 cable : Df, D90, D600, D610, D750, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D5600, D7000, D7100, D7200 and D7500; CoolPix A, P7700, P7800, Z6, Z7 and later.
  • Canon E3 type : Digital Rebel, EOS 1000D, EOS 100D, EOS 200D, EOS 1100D, EOS 1200D, EOS 1300D, EOS 300D, EOS 350D, EOS 400D, EOS 450D, EOS 500D, EOS 550D, EOS 600D, EOS 60D, EOS 60Da, EOS 650D, EOS 700D, EOS 70D, EOS 77D, EOS M6, EOS M5, EOS 800D, EOS 80D, EOS 760D, EOS 750D, EOS R, Kiss Digital, Kiss F Digital, Kiss N, Kiss X2, Kiss X2, Kiss X3, Kiss X4, Kiss X5, Kiss X50, Kiss X6, PowerShot G1 X, G1 X MK2, PowerShot G10, PowerShot G11, PowerShot G12, PowerShot G15, PowerShot G16, PowerShot SX50 HS, SX60, Rebel SL1, Rebel T1i, Rebel T2i, Rebel T3, Rebel T3i, Rebel T4i, Rebel T5i, Rebel XS, Rebel XSi, Rebel XT, Rebel XTi, Pentax 645D, 645Z, ist D, ist DL, ist DL2, ist DS, ist DS2, K-3, K-3 II, K-30, K-5, K-5 II, K-5 IIs, K-50, K-500, K-7, K10 Grand PrixK100D, K100D Super, K10D, K110D, K200D, K20D, MZ-6, MZ-L, and ZX-L, Samsung GX-1L, GX-1S, GX-20, NX-10, NX-100, NX-11, NX-5, Contax 645, N, N Digital, N1, NX, Fujifilm X-E1, X-E2, X-T1, X-T2, Sigma SD1, SD1 Merrill, SD15, Hassleblad H, H3D, H4D-200MS, H4D-31, H4D-40, H4D-50, H4D-50MS, H4D-60, LYTRO Illum, Olympus E-M1 Mark II.
  • Canon N3 type : EOS 10D, 20D, 30D, 40D, 50D, 7D, 7D Mark II, 6D, 1D, 1Ds, 1Dx, 1D Mark II, 1Ds Mark II, 1D Mark III, 1Ds Mark III, 1D Mark IV, 5D, 5Ds, 5Ds R, 5D Mark II, 5D Mark III & 5D Mark IV and later.
  • Sony Multi-terminal : RX100 II, RX100 III, RX100 IV, RX100 V, NEX-3N, A3000, A3500, A5000, A5100, A6000, A6300, A6500, A7, A7 II, A7R, A7R II, A7R III, A7S, A7S II, A7 III, A9, A58, A68, A77 II, A99 II, HX50, HX50V, HX60, HX60V, HX80, HX90V, HX300, HX350, HX400, HX400V, WX500, RX10, RX10 II, RX10 III, RX1R II and later.

Smart Phone Apps

Thumb Up !!

One of the guiding principles when designing our app was to allow the photographer the freedom to focus on the subject instead of operating his or her phone. To this end, we made the function as natural as possible with a simple press, drag, and release action.





Using the app with one hand.

Scene Modes

Basic

Basic mode offers the functions, from basic to advanced, including focus, single shutter release, self-timer, bulb, mirror lock-up…etc.

Timelapse

Easily handle time-lapse photography, even up to very long exposure times. Just set the interval, number of photos and bulb, and your ready to go!

Star Trail

Take a series of long exposure shots which turn the stars in the sky into long streaking lights. The series is then stitched together to form one cohesive image.

D&B

Dodge and burn your frame with a black card. App calculates the best shield time to dodge and make alerts to remove the card from the len to start to burn.

Bracket

Take a series of photographs with different brightness settings and stitch them together to form one optimal HDR photo.

Scheduled tasks

Set a date anytime up to 7 days in advance and your new photo sidekick will make sure you don’t miss the big event.

Sound trigger

App monitors the volume; and if the sound level goes over the preset setting, the shutter will be triggered.

Geo-Tagging(GPS)

Cubic Trigger shares GPS data from phone to camera for exif information of the photos. (Only Nikon cameras are supported.)

Easy Setup

Photography is fun! But fiddling with the dials and all the little details is not. Rather than rooting through your camera’s forbidding menu, with the Cubic Trigger app the preset modes are only a flick away. Just set it and forget it, and Cubic Trigger will do all the legwork for you, leaving you to enjoy the scene around you.

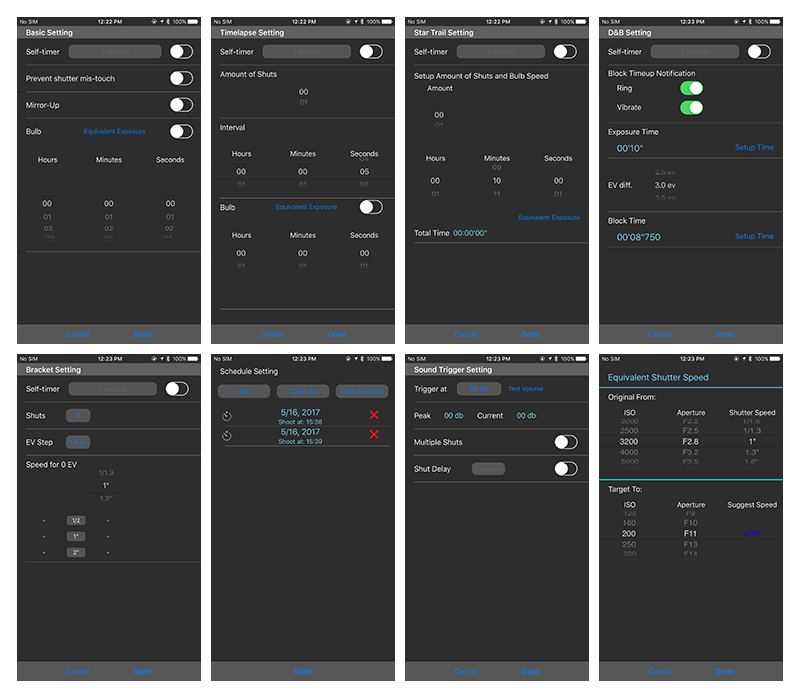

*Screens snap from Apple iOS App.

Run In Background

Don’t worry about your phone being tied down; Cubic Trigger apps can run in the background, keeping your phone free to make calls or surf the internet while you wait for your masterpiece to come to life.
